Help Docs

ManageEngine ServiceDesk Plus Cloud

ManageEngine ServiceDesk Plus (SDP) Cloud is an online help desk software built on the ITIL framework with integrated asset management capability. With a simple API level integration, you can tightly integrate Site24x7 with ManageEngine ServiceDesk Plus Cloud. Based on your preset configuration, any down/trouble alerts from Site24x7 are converted into tickets in ManageEngine ServiceDesk Plus Cloud portal. Finally, when the incidents are resolved in Site24x7, the tickets are automatically closed in your ManageEngine ServiceDesk Plus Cloud portal. You can further track and manage IT tickets efficiently by designating them to technicians, resolve issues much faster–thus, increasing the productivity of your IT staff, and ensure end user satisfaction. Read more to know how your IT teams can leverage Site24x7's ManageEngine ServiceDesk Plus Cloud integration to offer a world class IT support.

Prerequisites

  • Site24x7 and ManageEngine ManageEngine ServiceDesk Plus Cloud are brands under Zoho and use Zoho Single Sign On for accessing accounts.
  • If you're the Zoho Organization Admin for your Site24x7 account with no pre-configured ManageEngine ServiceDesk Plus Cloud account, a trial  account will be created automatically and then you'll have to navigate to ManageEngine ServiceDesk Plus Cloud account to configure the settings.

    Note

    You must either have a Super Admin or an Admin role in your Zoho Organization account inorder to setup this integration.

  • Additionally, you must also have a technician role in your ManageEngine ServiceDesk Plus Cloud account to successfully enable integration with Site24x7.
    Note

    Within the ManageEngine ServiceDesk Plus Cloud portal, you can assign tickets to other technicians. To achieve this, it is important to add these technicians to your ManageEngine ServiceDesk Plus Cloud account and provide them with sufficient privileges. Learn how to add a technician in your ManageEngine ServiceDesk Plus Cloud account.

ServiceDesk Plus Cloud CMDB Integration:

Site24x7 now supports CMDB (Configuration Management Database) Integration with ServiceDesk Plus Cloud. If you enable this integration,

  • Site24x7 Inventory details will be synced automatically with ServiceDesk Plus Cloud's CMDB.
  • Configuration changes detected by Site24x7 will be synced to the Configuration Items added in ServiceDesk Plus Cloud.

Fig 1: ManageEngine ServiceDesk Plus Cloud configuration

Fig 2: ManageEngine ServiceDesk Plus Cloud configuration details

Integration Procedures

To connect your Site24x7 account to ManageEngine ServiceDesk Plus Cloud, follow the steps below:

  1. Log in to Site24x7.
  2. Navigate to Admin > Third Party Integration.
  3. Choose ManageEngine ServiceDesk Plus Cloud from the list of integrations.
  4. You're redirected to the ManageEngine ServiceDesk Plus Cloud Integration page. Update the integration form as follows:
  5. Request Subject: Use the $ tags to customize the subject line of your alert ticket. Use Incident and Custom Parameters to customize the subject.
  6. ManageEngine ServiceDesk Plus Cloud Portals: Provide the portal name in this field. If you wish to change the portal name you'll have to delete the integration and create a new one.
  7. Template Name: In ServiceDesk Plus Cloud, there are predefined incident formats called as Templates. You can provide the Template Name from ServiceDesk Plus Cloud in this field. If not, the default name, Default Request, will be used as the Template Name.
    To obtain the Template Name, log in to your ServiceDesk Plus Cloud account and navigate to New Request > Service Catalog > Incident Templates
  8. Request Creation Mode: Click the manual or automatic radio button to invoke the desired mode of ticket creation in your ManageEngine ServiceDesk Plus Cloud portal.
    Note

    In the automatic mode, down/trouble alerts from Site24x7 automatically log tickets in your ManageEngine ServiceDesk Plus Cloud portal. Detailed description about your monitor's downtime is also documented on the ticket. When the incidents are resolved in Site24x7, the tickets are closed automatically. Alternately, by initiating a "close request", you can remotely close the ticket from within your Site24x7 control panel.

    In the manual mode, the operator must access the (Create Request) link provided under the Overall status widget in the Monitor Summary Dashboard or the RCA page, and then submit the "Create Request" to manually generate a ticket in your ManageEngine ServiceDesk Plus Cloud portal. Detailed description about your monitor's downtime is also documented on the ticket. By submitting a "close request", you can remotely close the ticket from within your Site24x7 control panel.

  9. Select Integration Level: You can post alerts to ManageEngine ServiceDesk Plus Cloud from specific monitors, all monitors/monitor groups associated to selected tags or all monitors in your account. It is set to "All Monitors", by default. Hence, it translates into a Global Integration where all alarms from your Site24x7 account are pushed to ManageEngine ServiceDesk Plus Cloud.
    Note

    For tags associated to your monitor group that have monitors in parent level and a few monitors in sub group level, alerts from only the parent monitors get logged as tickets in ManageEngine ServiceDesk Plus Cloud.

  10. Trigger Alerts for Monitor Status Change: Use the check boxes to choose the monitor status changes (Down, Trouble, and Critical) for which you'd wish to receive alerts.
  11. Manually Close Incidents When My Monitor Status Changes to Up: Use the radio button to decide whether to close incidents manually or automatically in ManageEngine ServiceDesk Plus Cloud, when the Site24x7 monitor alert changes to Up. By default, the incidents are resolved automatically in ManageEngine ServiceDesk Plus Cloud.

    Figure 3: ManageEngine ServiceDesk Plus Cloud - Site24x7 integration page

Remotely Manage Tickets in Site24x7

Based on your chosen request creation mode, Site24x7 lets you to remotely create and close tickets, without you even having to access the ManageEngine ServiceDesk Plus Cloud portal.

Automatic Mode: Site24x7 down/trouble alerts cause automatic ticket creation in the ManageEngine ServiceDesk Plus Cloud portal. The tickets are automatically closed in the ManageEngine ServiceDesk Plus Cloud portal when the incidents are resolved in Site24x7. Nevertheless, tickets can also be remotely closed from the Site24x7 control panel itself. Follow the steps below:

    1. Log in to Site24x7.
    2. Open the Monitor Summary Dashboard for your Down/Trouble monitor.
    3. Access the Create Request in ManageEngine ServiceDesk Plus Cloud link listed under the overall status widget.

      Figure 4: Create request in ManageEngine ServiceDesk Plus Cloud
    4. You can also access the same link from your RCA page.

      Figure 5: Create request in ManageEngine ServiceDesk Plus Cloud/On-Premise/MSP
    5. A Create Request window will pop up with the subject line of the ticket and a "Close Request" button
    6. Submit Close Request button to remotely close the ticket in your ManageEngine ServiceDesk Plus Cloud portal.

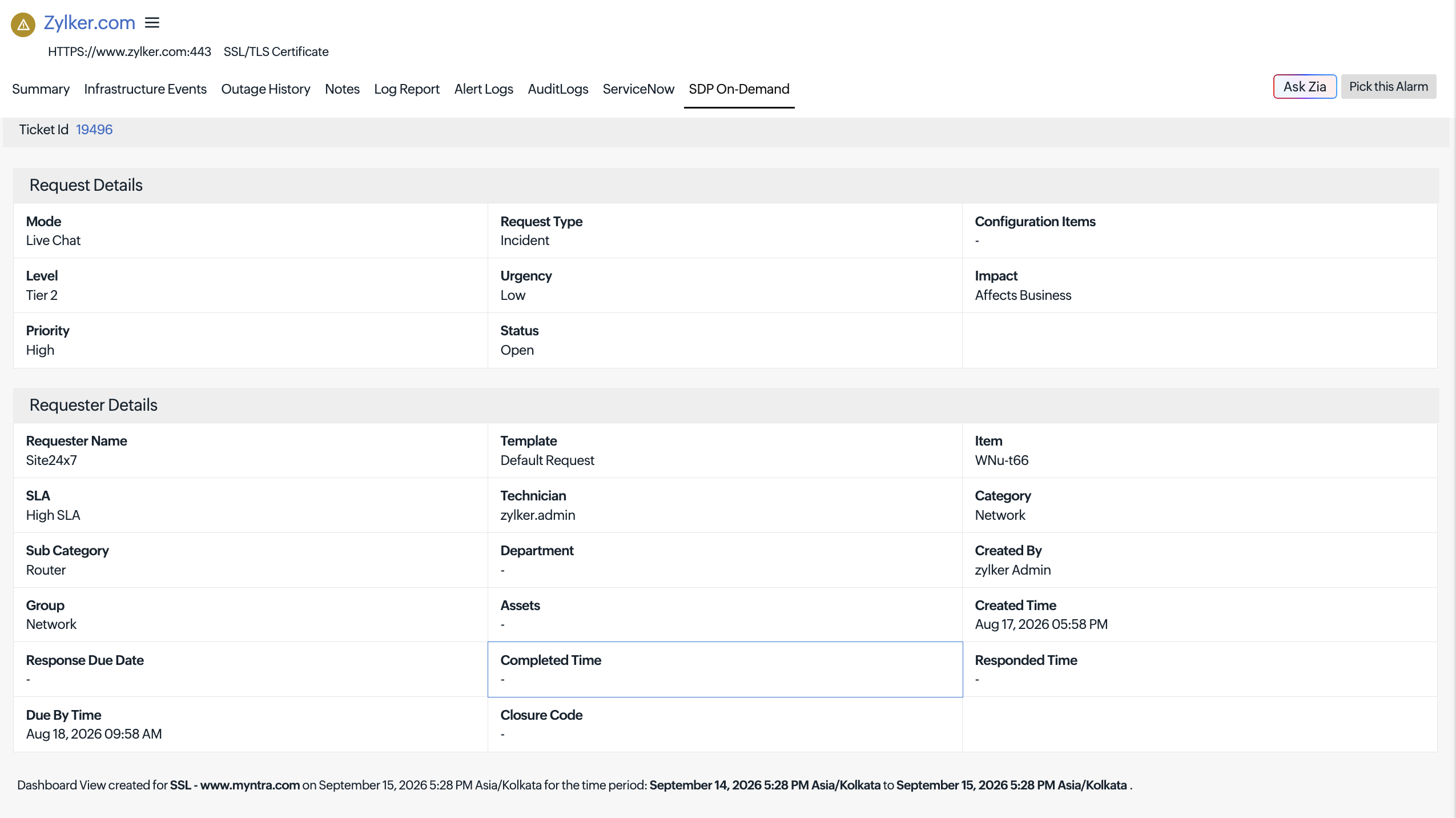

      Figure 6: Request details
    7. Once the request is initiated, a Request Details window will pop up on your screen giving you details like; Ticket ID, Subject line, Technician Name and Status of the ticket.

Figure 7: Request status closed

Manual Mode: You can remotely log your down/trouble tickets in the ManageEngine ServiceDesk Plus Cloud portal; further, close these tickets remotely from the Site24x7 control panel itself. Follow the steps below:

    1. Log in to Site24x7.
    2. Open the Monitor SummaryDashboard for your Down/Trouble monitor.
    3. Access the Create Request in ManageEngine ServiceDesk Plus Cloud link listed under the overall status widget. You can also access the same link from your RCA page.
    4. A Create Request window will pop up with the subject line of the ticket and a Create Request button.
    5. Click the Create Request button to remotely initiate the ticket creation in ManageEngine ServiceDesk Plus Cloud portal.

      Figure 8: Create request
    6. Once the request is completed, a Request Details window will pop up giving you details of the ticket, including Ticket ID, Subject line, Technician Name and Status of the ticket.
    7. Later, you can access the same link Create Request in ManageEngine ServiceDesk Plus Cloud and submit Close Request button to remotely close the ticket listed in your ManageEngine ServiceDesk Plus Cloud portal.

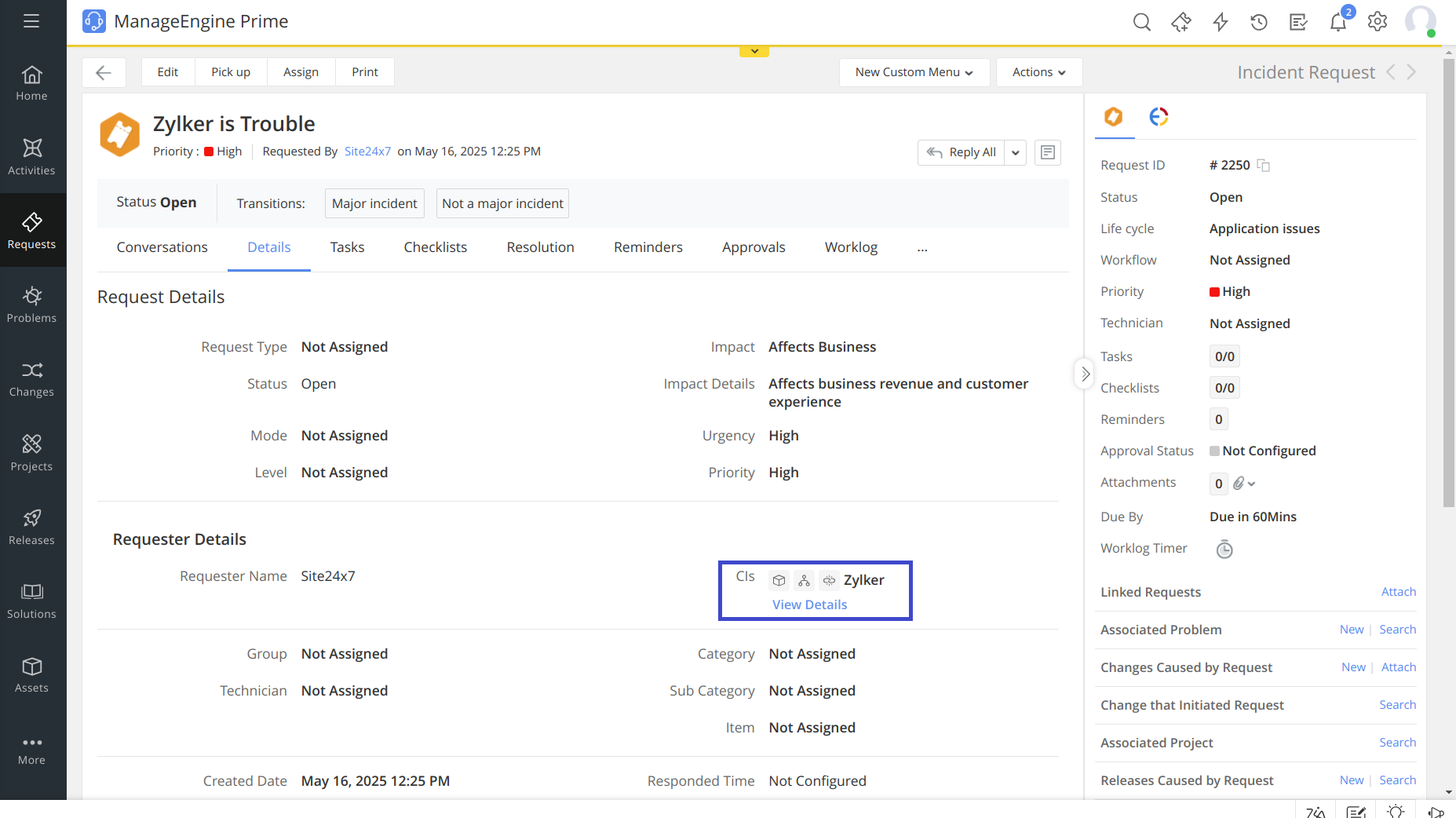

View Tickets in ManageEngine ServiceDesk Plus Cloud Portal

Once you've integrated your Site24x7 account with ManageEngine ServiceDesk Plus Cloud, you'll be able to view all your alert tickets in a single dashboard inside the ManageEngine ServiceDesk Plus Cloud Client. On top of this, any status change is documented inside the ManageEngine ServiceDesk Plus client with proper description. Within the ManageEngine ServiceDesk Plus Cloud portal, you can assign your tickets to a technician and execute many more operations. However, when the ManageEngine ServiceDesk Plus Cloud application itself is not accessible, no down/trouble tickets would be logged in your ManageEngine ServiceDesk Plus Cloud portal. Learn more

Site24x7 Alert Status ManageEngine ServiceDesk Plus Cloud Status
Down

Alert triggers ticket creation inside ManageEngine ServiceDesk Plus portal. This
is controlled by the request creation mode settings.

Trouble

Alert triggers ticket creation inside ManageEngine ServiceDesk Plus portal. This
is controlled by the request creation mode settings.

Trouble monitor
turns Down

Trouble alert triggers ticket creation inside ManageEngine ServiceDesk Plus portal.
If the same monitor turns down; no new ticket will be
created separately for the down status–instead
a comment will be added on the same ticket.

Down/Trouble
monitor turns UP

Ticket is automatically closed inside ManageEngine ServiceDesk Plus portal.

Down/Trouble
monitor is suspended

Ticket remains open inside ManageEngine ServiceDesk Plus portal, until the
suspended state of the monitor is revoked.

Figure 9: View Requests in ManageEngine ServiceDesk Plus Cloud Portal

Figure 10: Request details in ManageEngine ServiceDesk Plus Cloud Portal

Note

Auto-resolve tickets and reduce resolution time further with Site24x7 IT Automation.

CMDB Integration

A configuration management database (CMDB) serves as a foundational resource for IT organizations, detailing the interconnections among hardware, software, and networks. It facilitates change management and identifies the impact on configuration items (CIs) due to issues in related components. Integrating your CMDB with monitoring tools like Site24x7 offers numerous advantages, including comprehensive mapping of CIs, support for hierarchical relationships, real-time sync updates, and accurate representation of monitor configurations within the CMDB.

Benefits of CMDB integration

Integrating your CMDB with monitoring tools like Site24x7 enhances the tracking and management of changes across resources. Through this integration, you can attain:
Comprehensive mapping of CIs: CMDB integration facilitates the creation of CI types for various monitors in Site24x7, capturing essential details such as server information, OS type, and IP addresses as user-defined fields (UDFs) within CIs.
Support for parent-child relationships: The integration supports hierarchical relationships, allowing for the representation of parent entities like servers and their associated child entities such as processes and services. This enables a holistic view of IT infrastructure components.
Continuous sync updates: The CMDB sync ensures that any additions, updates, or deletions of monitors in Site24x7 are reflected in the CMDB every 10 minutes. This ensures real-time visibility into changes in the monitored environment.

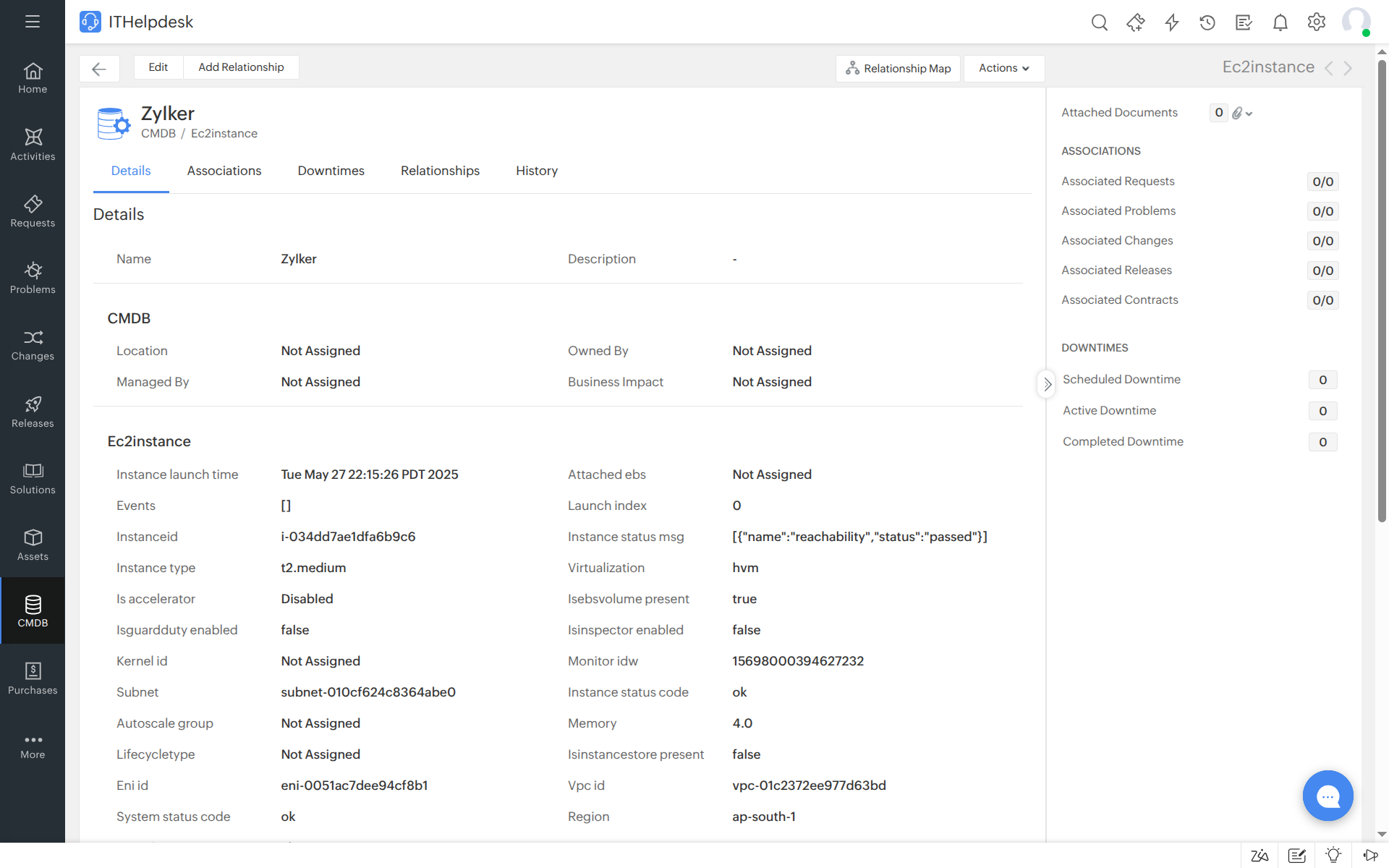

Translation of monitor configuration into CIs: Monitor configuration details from Site24x7 are seamlessly translated into CIs within the service desk and operations  system through CMDB sync. This ensures consistency and accuracy in IT infrastructure management.

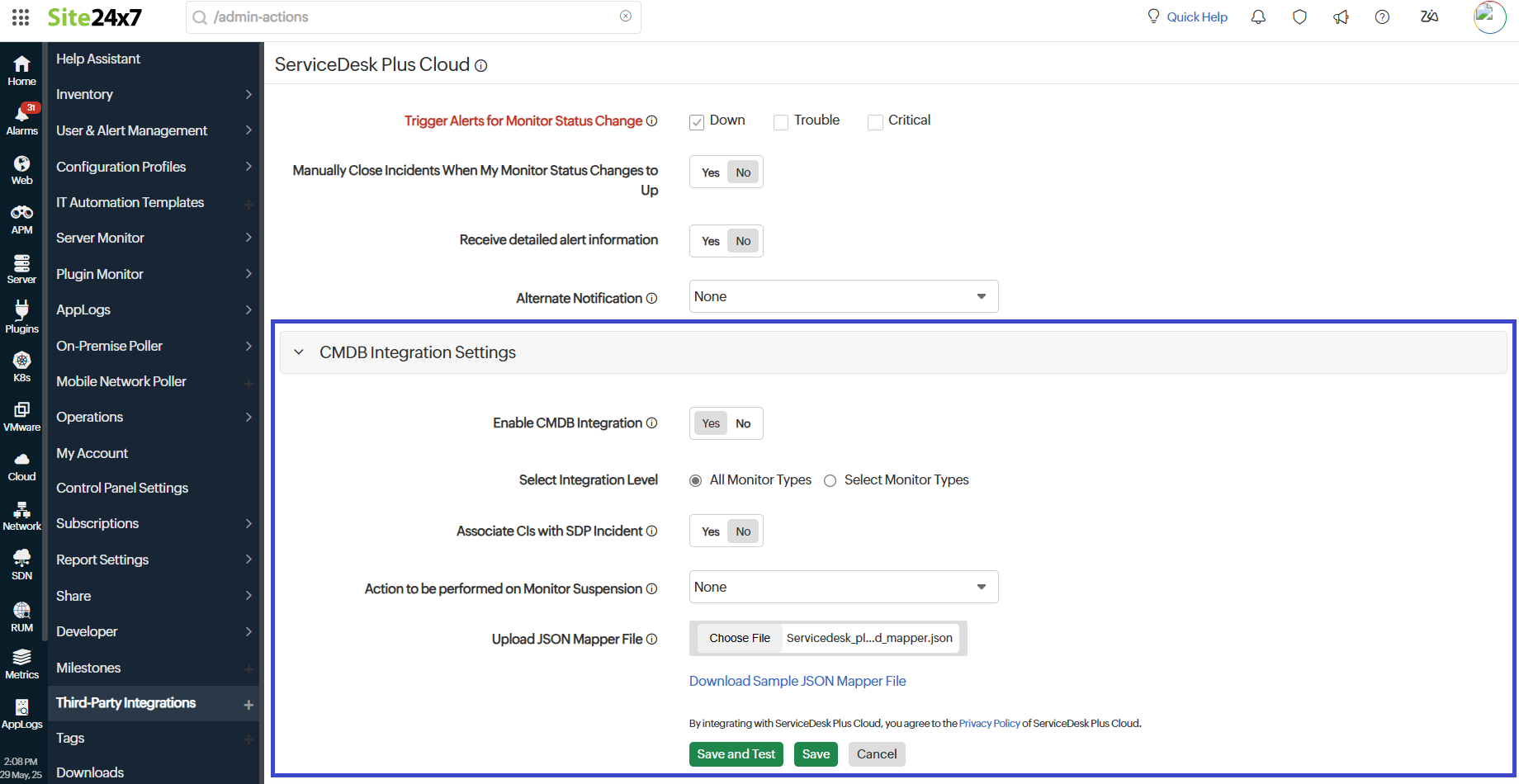

How to integrate with a CMDB?

  1. Log in to Site24x7.
  2. Go to Admin > Third-Party Integrations.
  3. Select ServiceDesk Plus Cloud from the list of integrations.
  4. In the ServiceDesk Plus Cloud integration page, go to CMDB Integration Settings and enable CMDB integration.
  5. You can enable CMDB integration for All Monitor Types or Select Monitor Types.
    Note

    By default, it's recommended to enable CMDB integration for all monitor types to ensure automatic synchronization of data additions, updates, and deletions.

  6. If you select the latter option, choose the specific monitor types from the drop-down menu.
    Click Save.
Note

  • Users with appropriate privileges can manage CI types and CI data within the selected ManageEngine ServiceDesk Plus Cloud portal.
  • The integration only supports monitor types with inventory detail.

Supported Areas:

1. Service Maps: Application, app servers, and their connected components are synchronized.

Figure 11: Service Maps - Site24x7

Figure 12: Service maps - ManageEngine ServiceDesk Plus Cloud

2. Layer 2 Maps: Relationships between network devices are synced, maintaining the topology of Layer 2 maps. Cross-linking between Layer 2 maps enhances network visualization and understanding.

Figure 13: Layer 2 map - Site24x7

Figure 14: Layer 2 maps - ManageEngine ServiceDesk Plus Cloud
Figure 15: Layer 2 maps - ManageEngine ServiceDesk Plus Cloud

3. Infrastructure Maps: Relationships defined by users are maintained, enabling customized mapping.

Figure 16: Infrastructure maps - Site24x7

Figure 17: Infrastructure maps - ManageEngine ServiceDesk Plus Cloud
